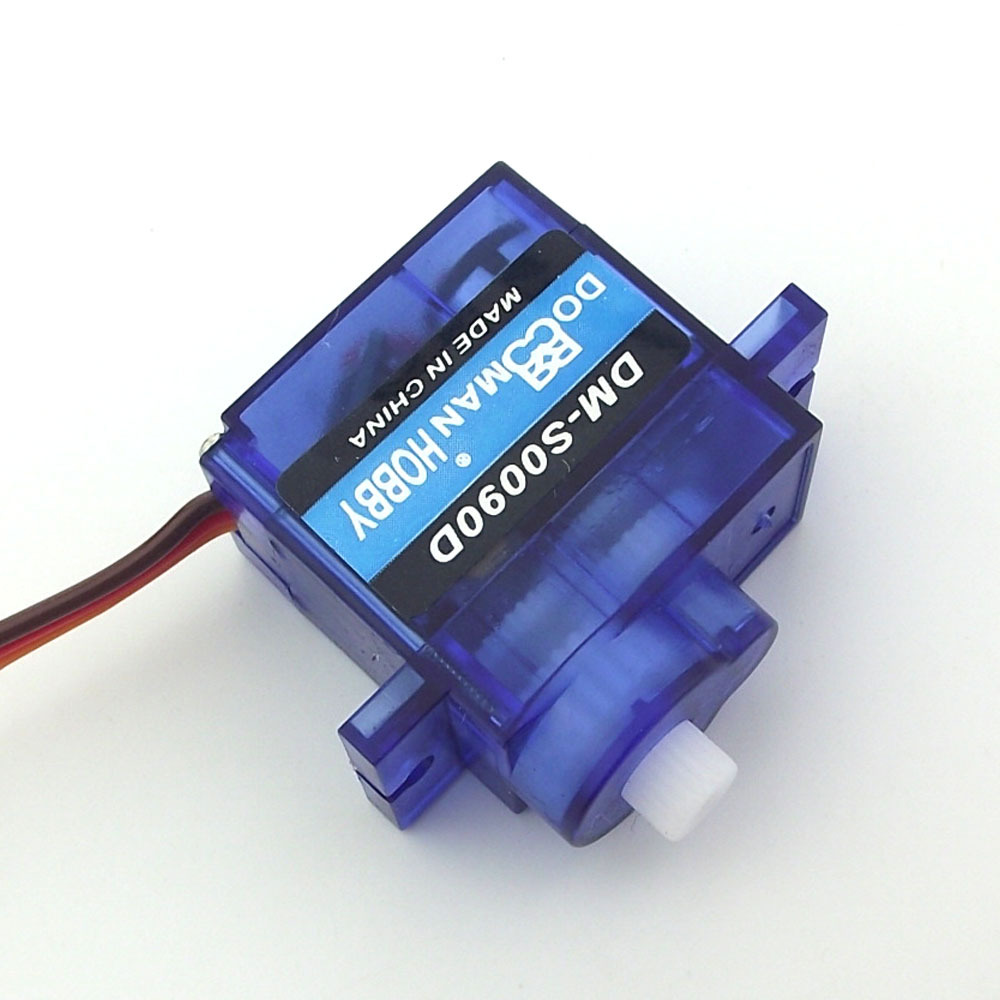

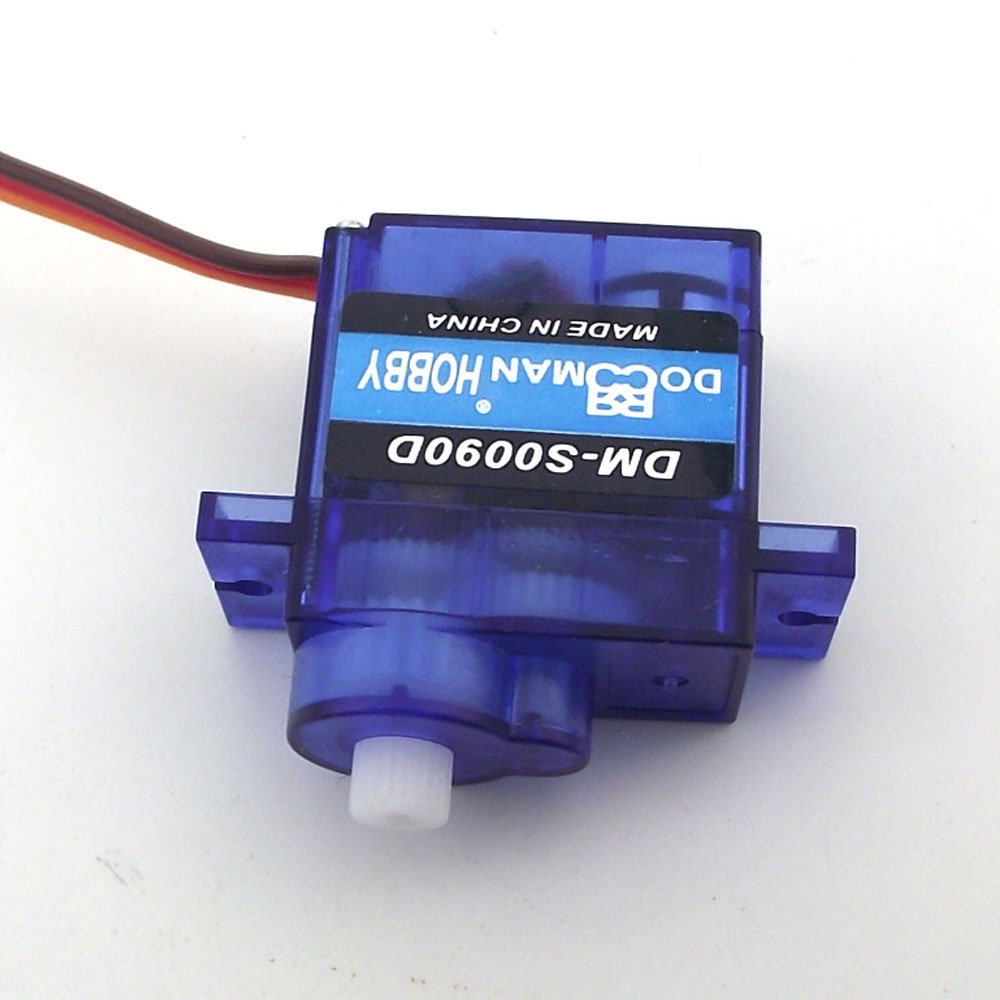

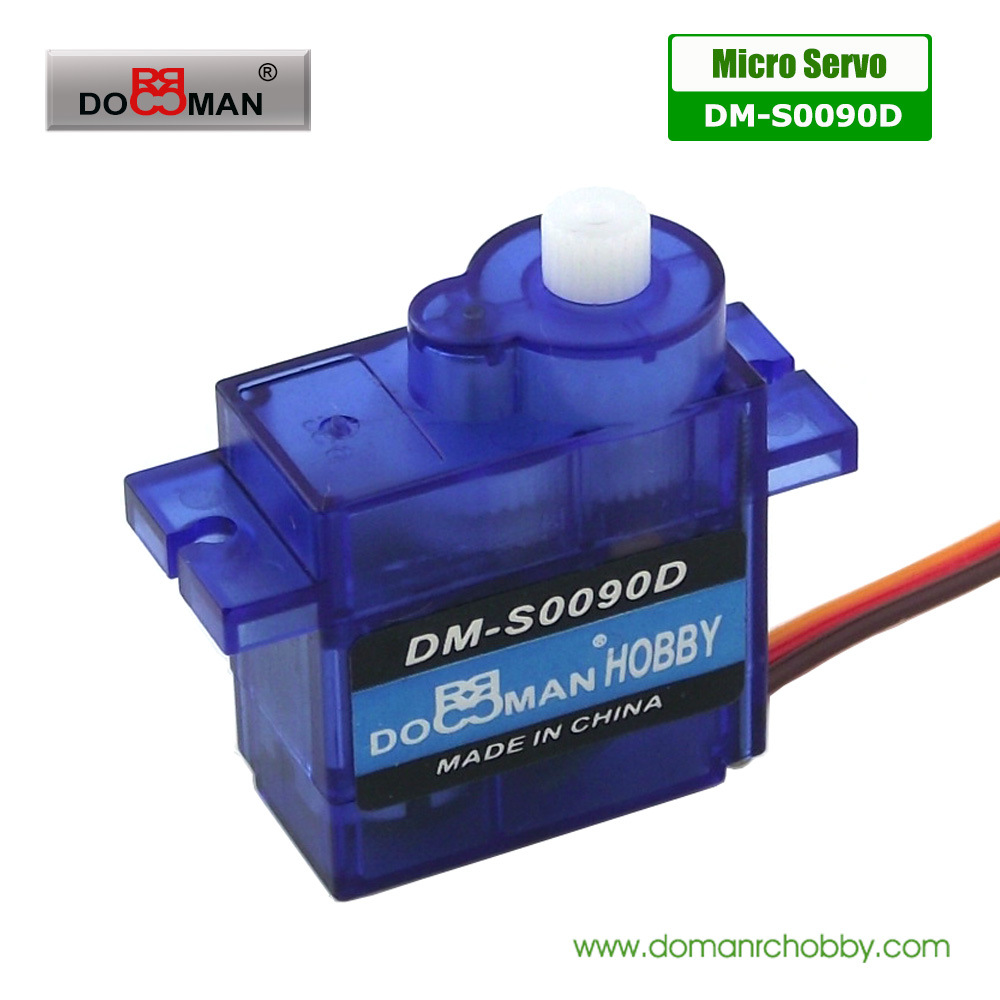

DM-S0090D Plastic Gear 9g DOMAN RC Miniature Digital Servo

[Company Profile]

Welcome to Shenzhen Xinjinbao Technology Co., Ltd.

Our motto: High quality at fair prices is the key to brand growth and development; dedicated service strives to create value for our customers!

Dealers, model shops, Taobao stores, clubs, racing tracks, and enthusiasts from all regions are welcome to inquire.



【Product Introduction】



9g 舵机塑胶齿9g伺服器 机器人舵机

【Features】:

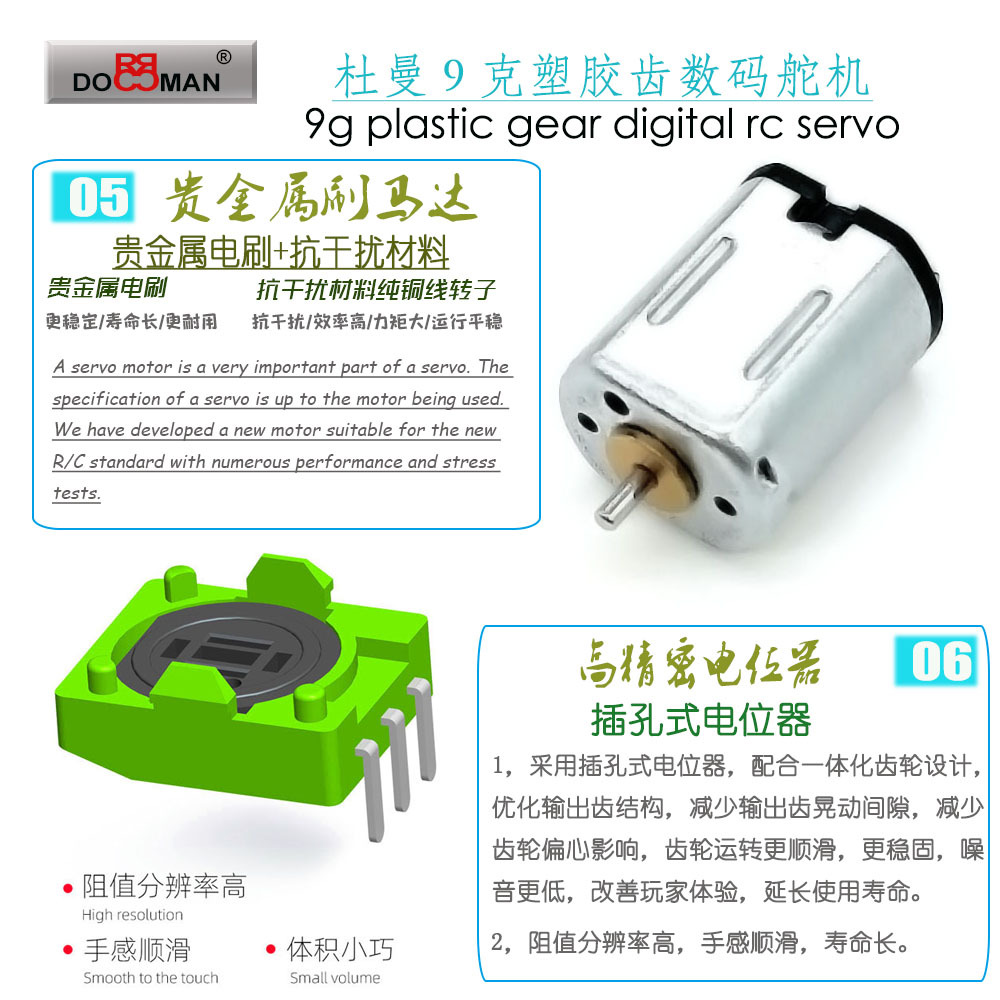

碳刷马达，数字舵机

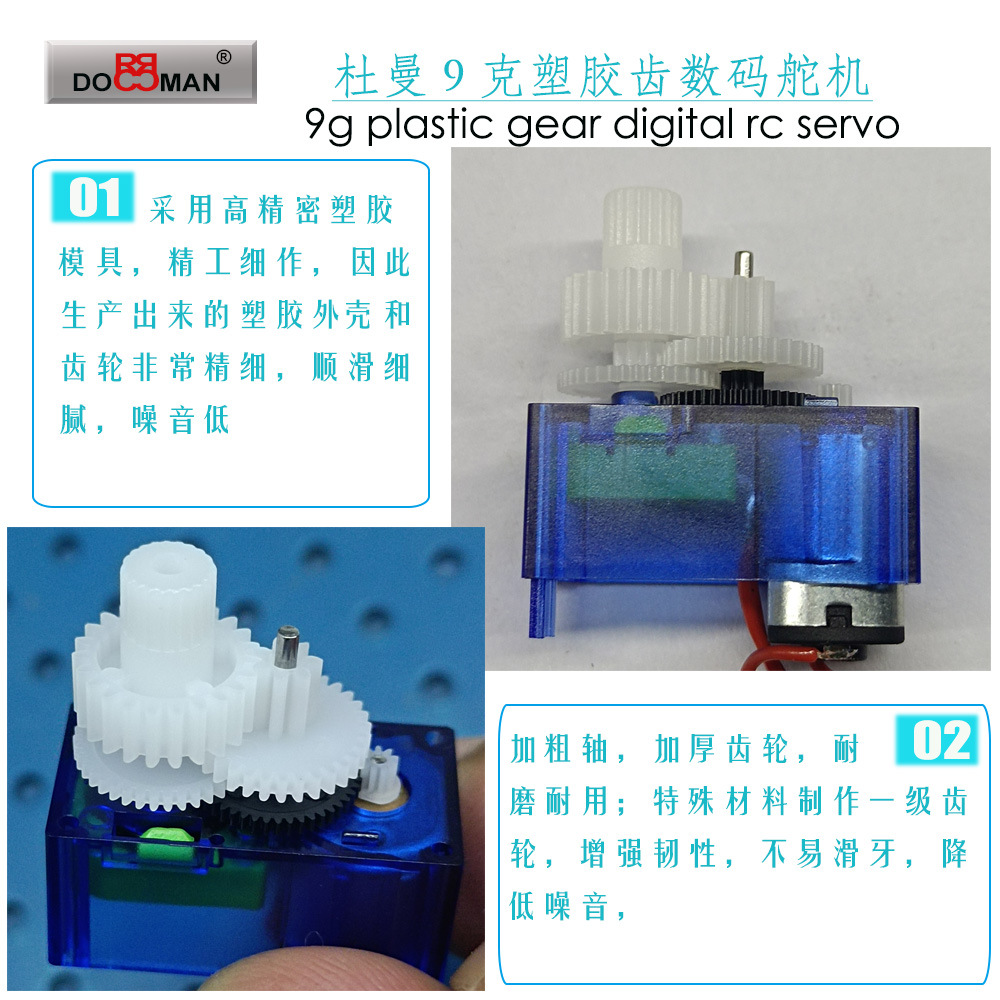

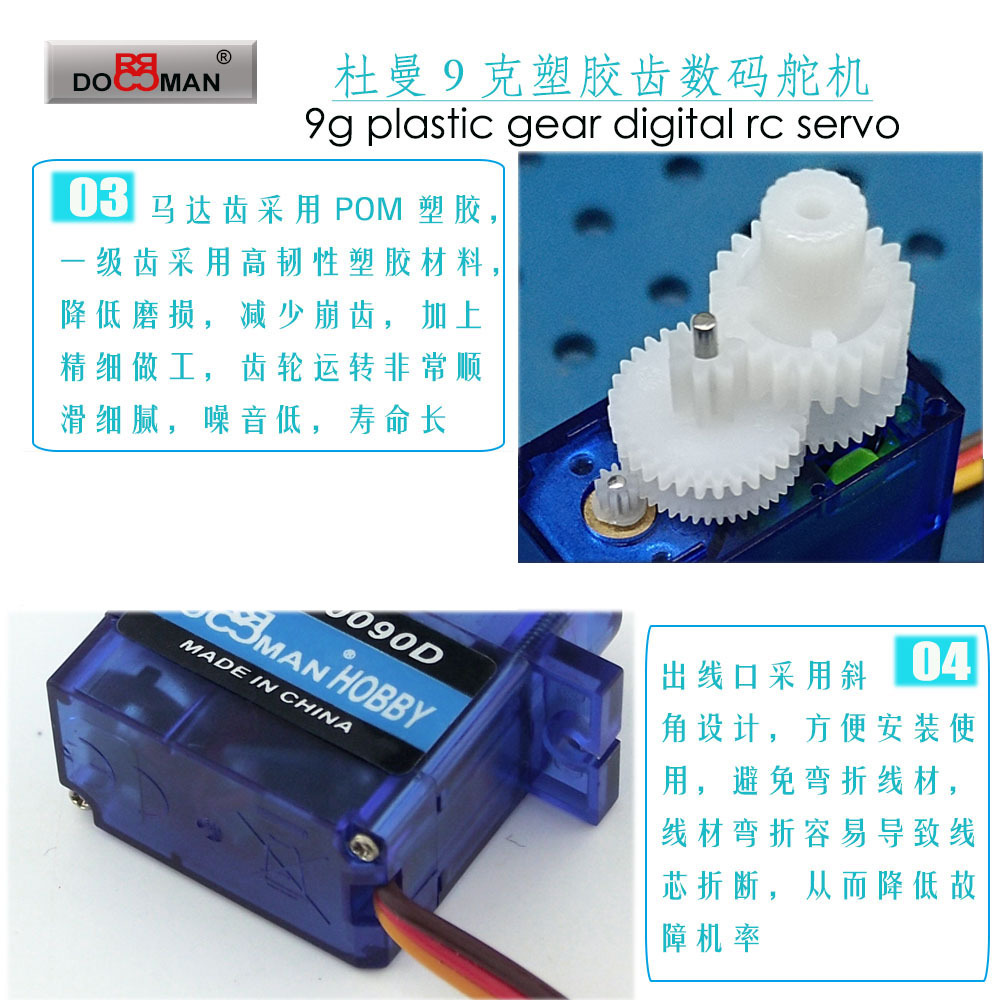

高精度精密加工POM齿轮，

优化设计结构，外观细腻，用料足良

遥控飞机模型用9g伺服器，

优质，性能优越，消费者信赖五星产品
价格平民，量大从优，接受OEM、ODM加工



【Specification】：



型号.:DM-S0090D

重量:9g

尺寸:23*12*22.5mm

速度:0.10sec/60deg (4.8v) 0.08sec/60deg (6.0v):

堵转扭矩:1.5kg.cm (4.8v) 1.6kg.cm (6.0v):

工作电压:4.8-6Volts

线长：20cm

快速，大扭力9g伺服器

Compatible with well-known remote control systems such as Futaba, JR, SANWA, and Hitec.

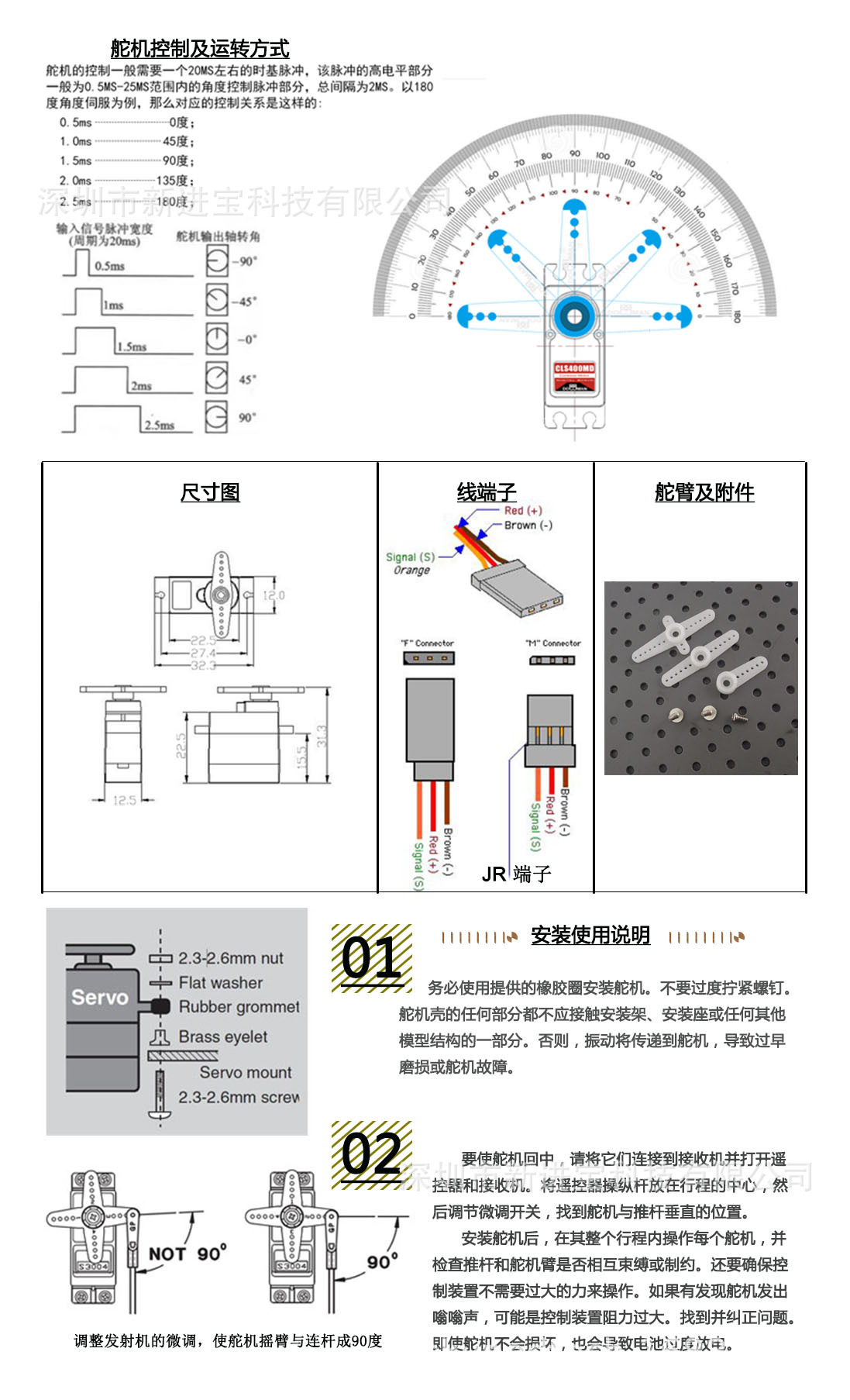

 旋转角度：180度（脉宽500-2500us）



180度的舵机，脉宽500-2500us，可以达到180度，有略微误差，（特殊脉宽要求咨询我们，可以定做）

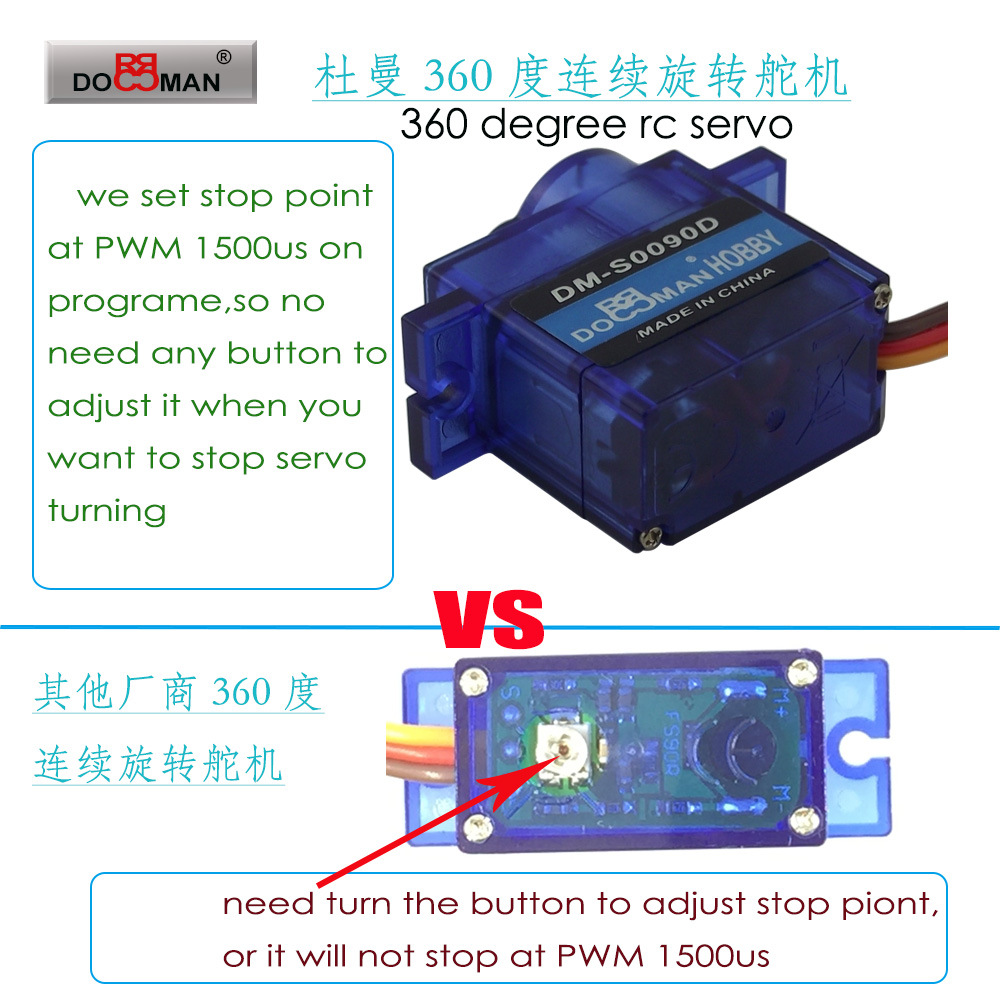

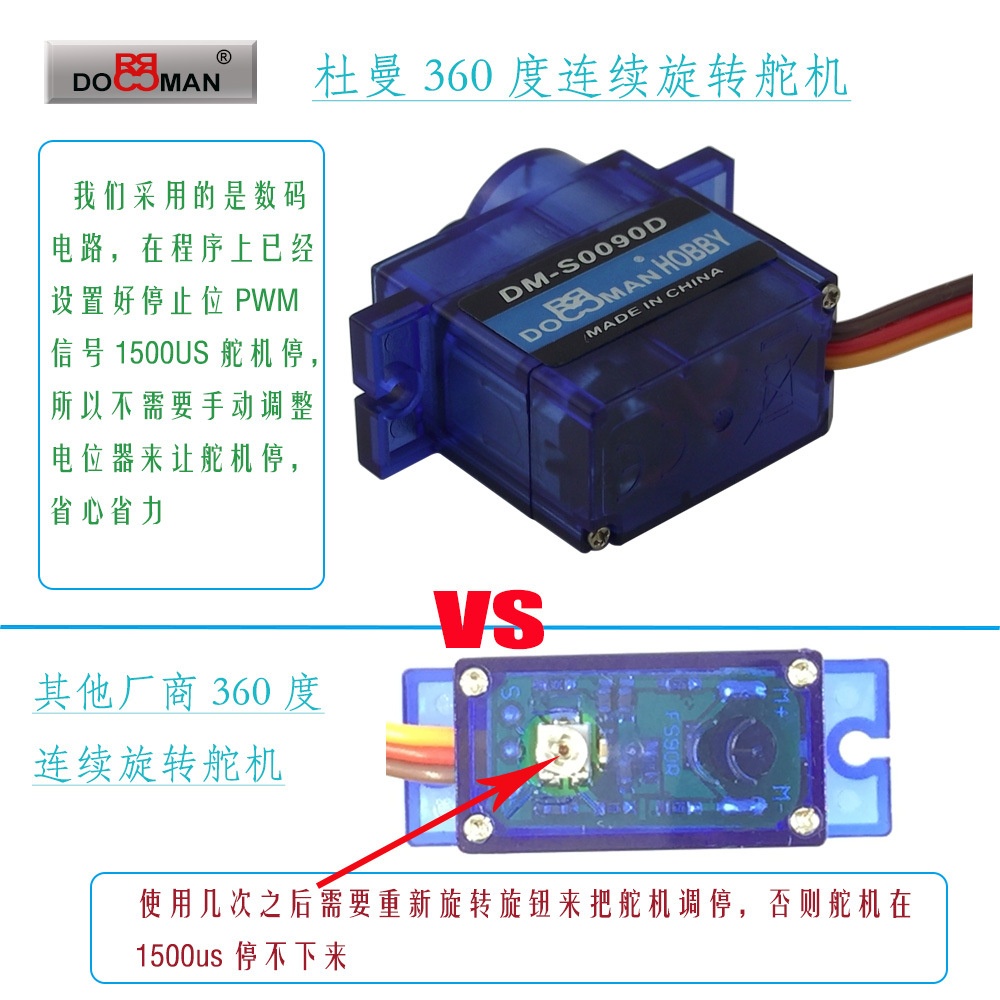

需 要360度连续旋转的要说明，360度舵机是PWM控制它的旋转速度和旋转方向，500-1500us的PWM是控制它正转，值越小，旋转速度越 大；1500-2500us的PWM是它反转，值越大，旋转速度越大。1500us的PWM是控制它停止。只能连续旋转，不能定位.

hint:

1，  本公司默认按标准接头（JR）生产，因为JR接头兼容其他接头；

2，   在安装使用舵机之前，必须认真阅读说明内容，以免造成不必要的损坏；

3，   用于震动较大的油动飞机、直升机、车模以及船模时，必须使用橡胶减震垫固定；

4，   请选择合适规格的舵机，扭矩规格不要过载，否则会损坏机构或零件；

5，   参照规格说明选择正确的电源电压，并确保供给充足的电流，以免影响舵机正常工作；超出电压范围使用

有可能导致舵机异常工作，甚至损坏，需要特别注意；

6，   保持舵机工作环境清洁，避免灰尘、腐蚀性气体或潮湿空气的侵蚀污染；

7，   本公司保留对产品规格进行修改的权力，恕不另行通知；

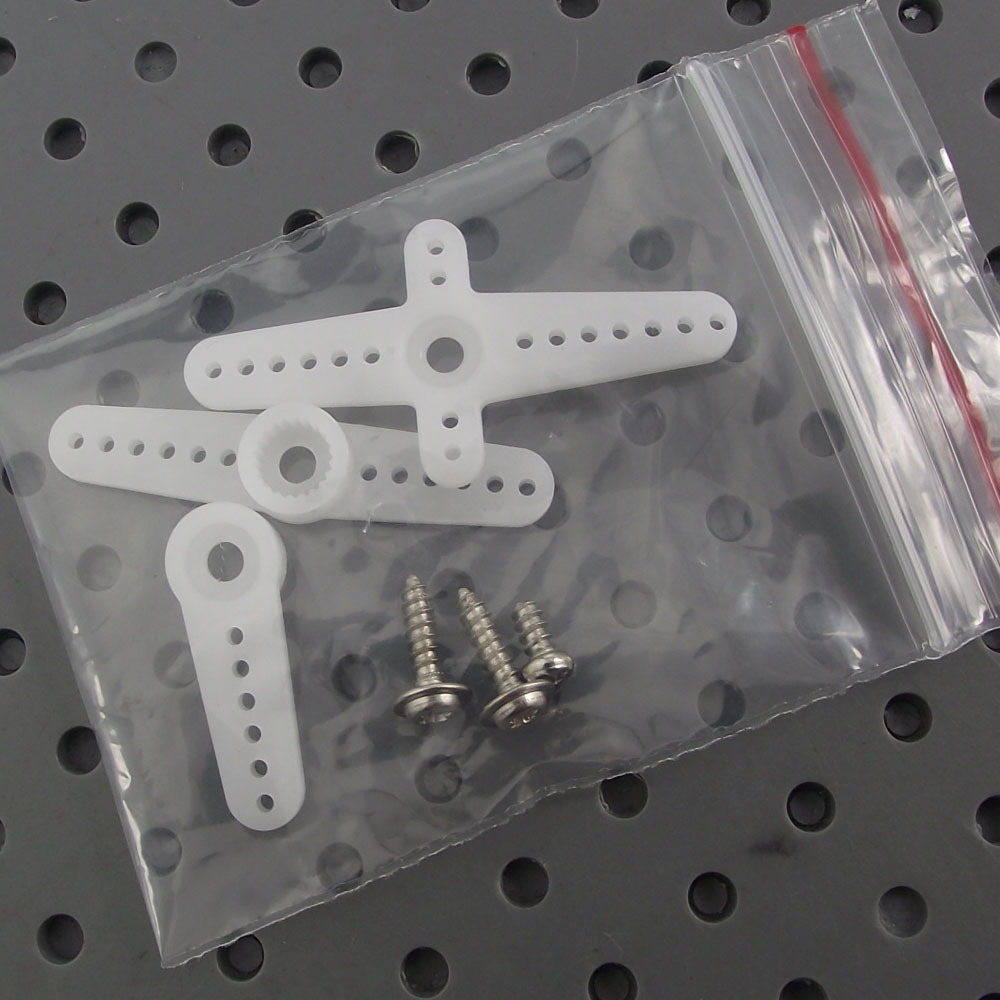

【Package】:

PE bag, 1 piece/bag

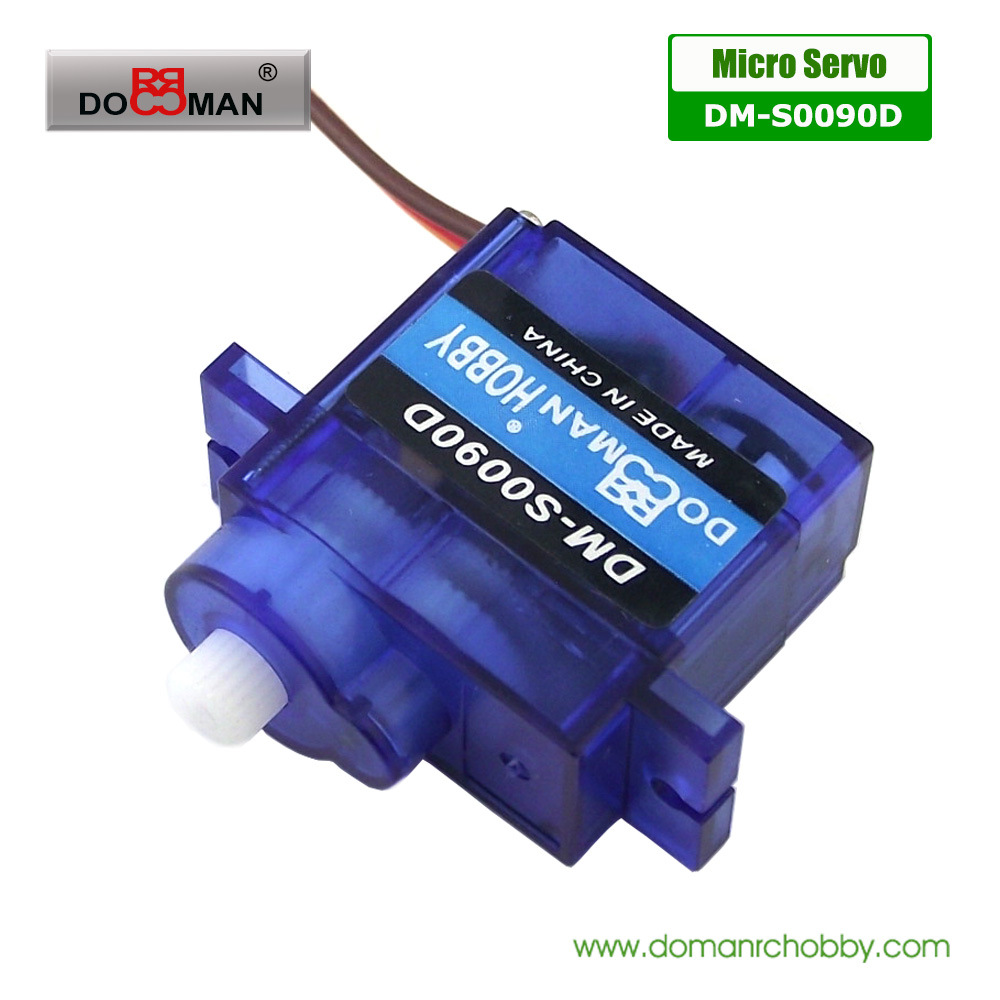

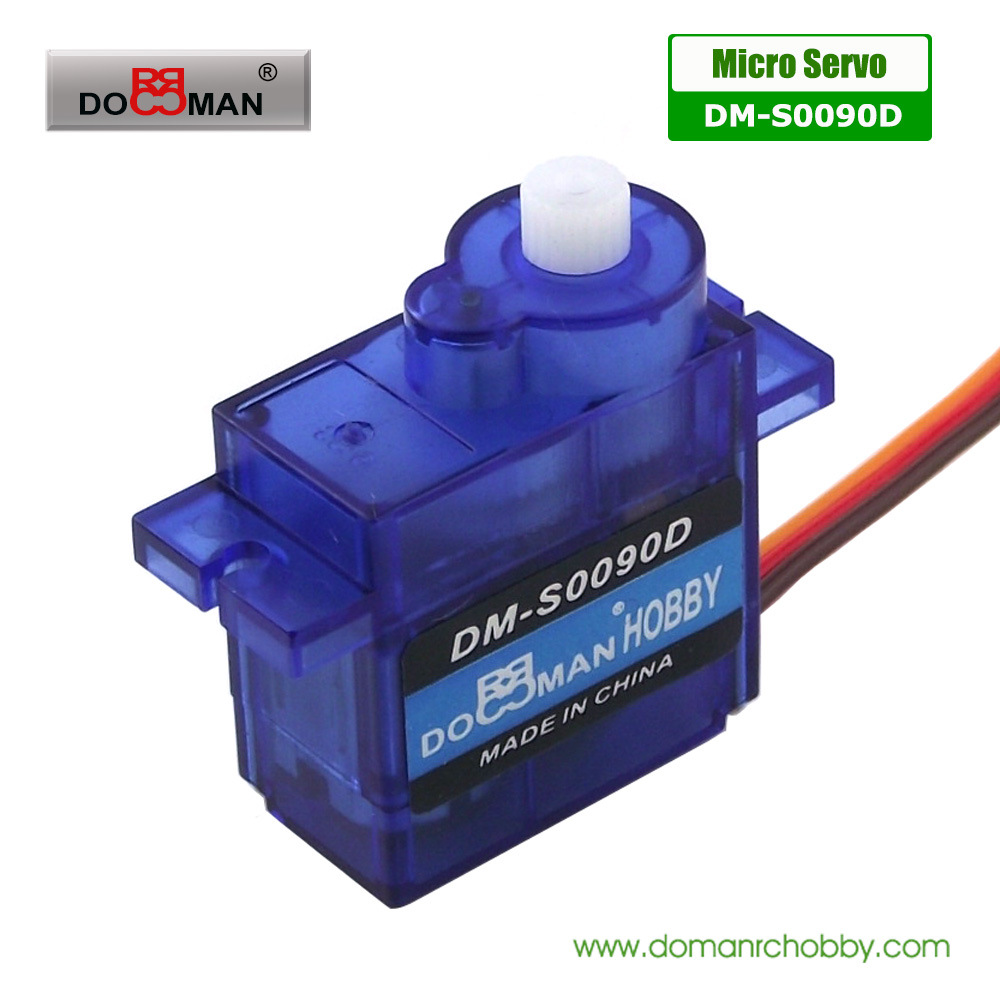

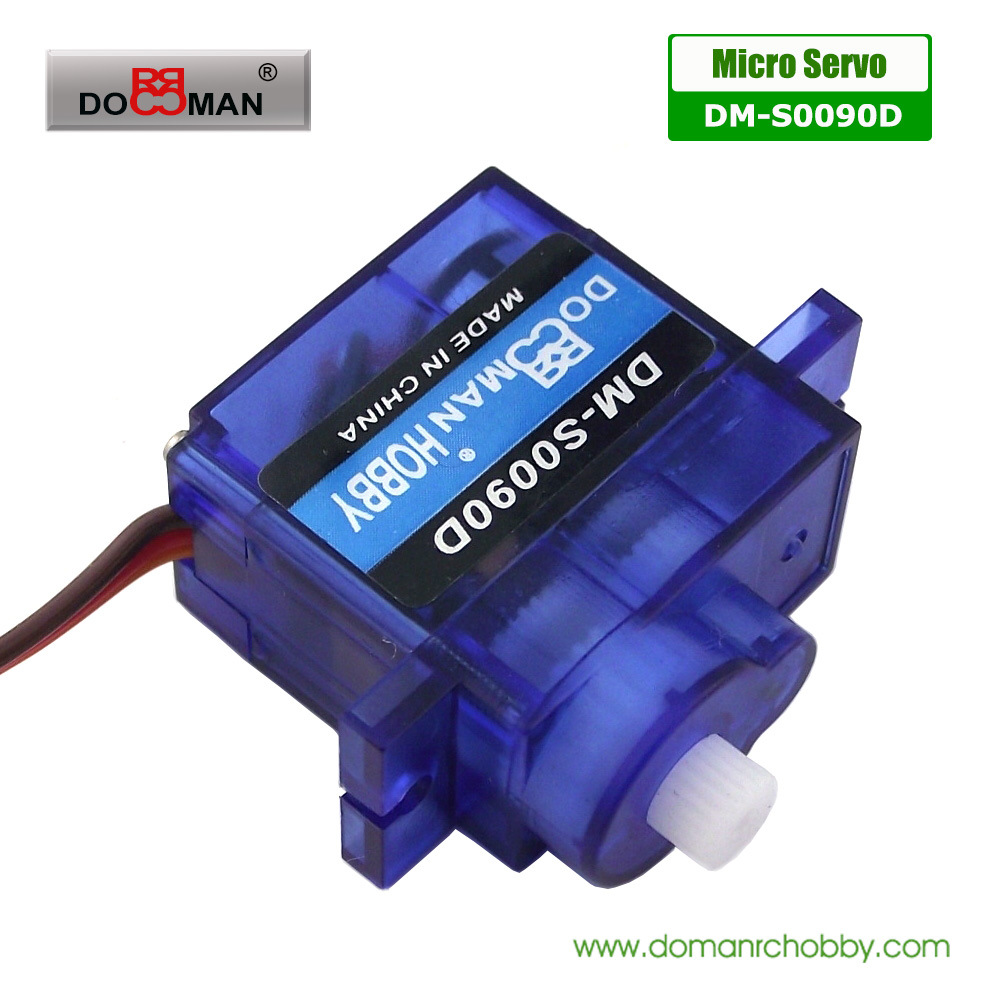

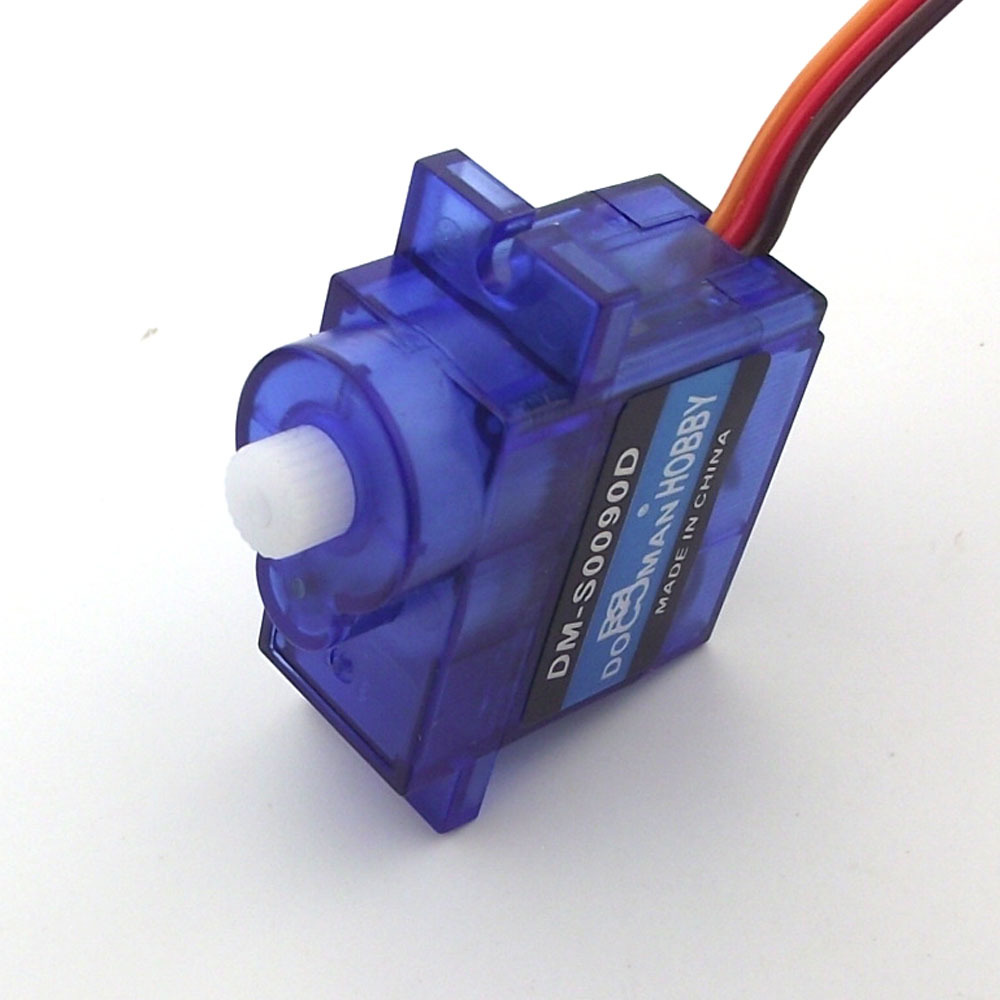

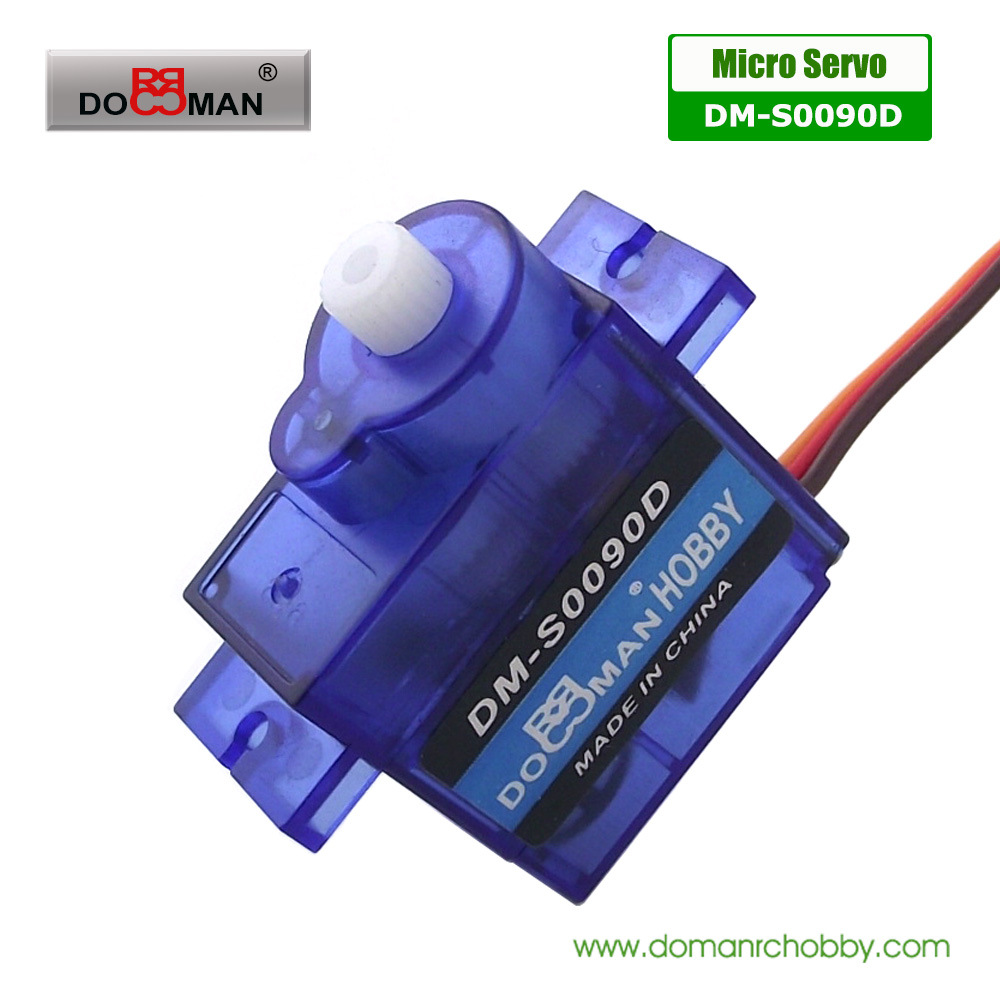

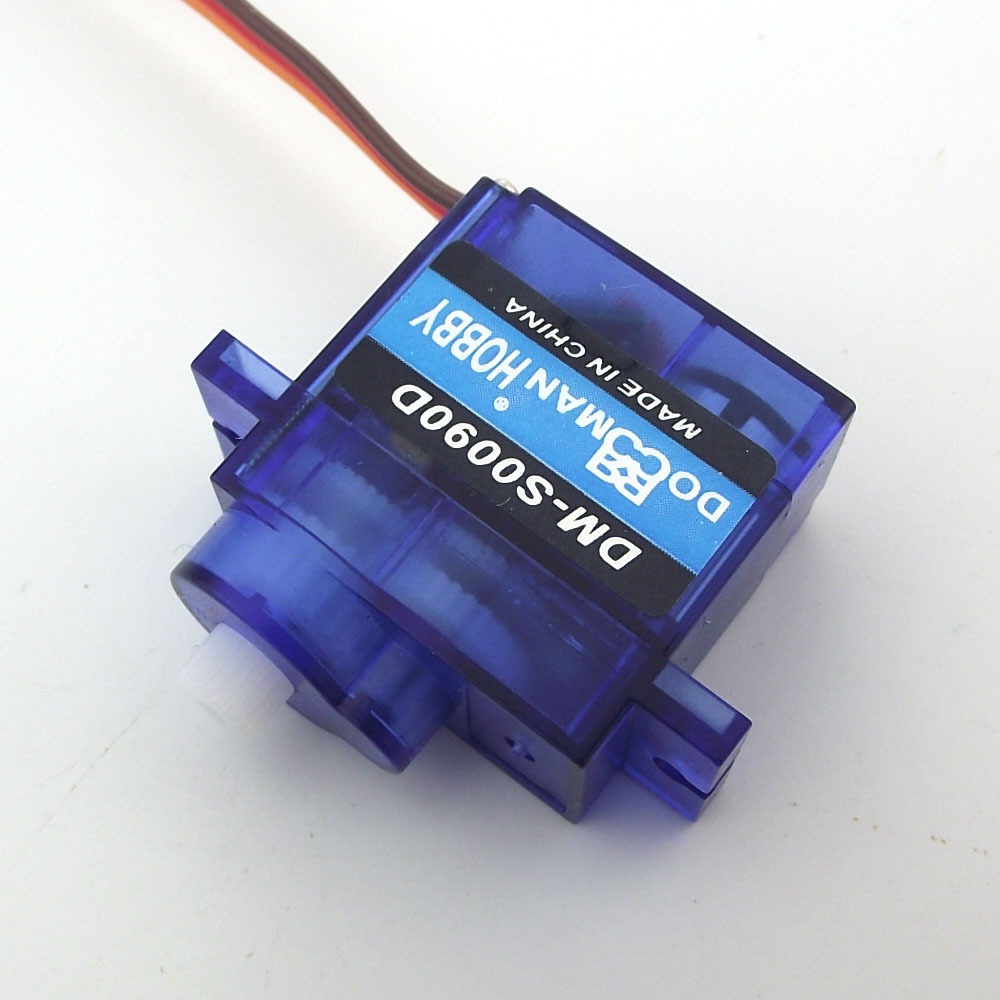

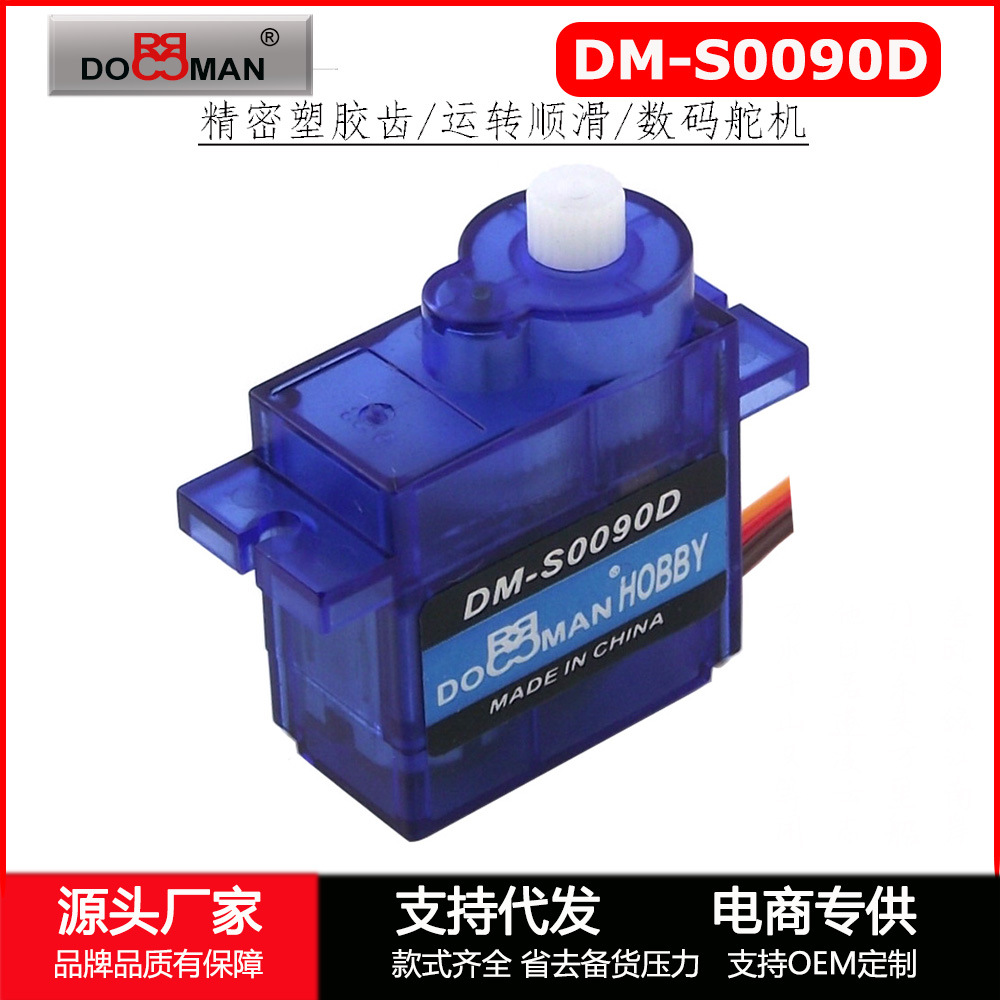

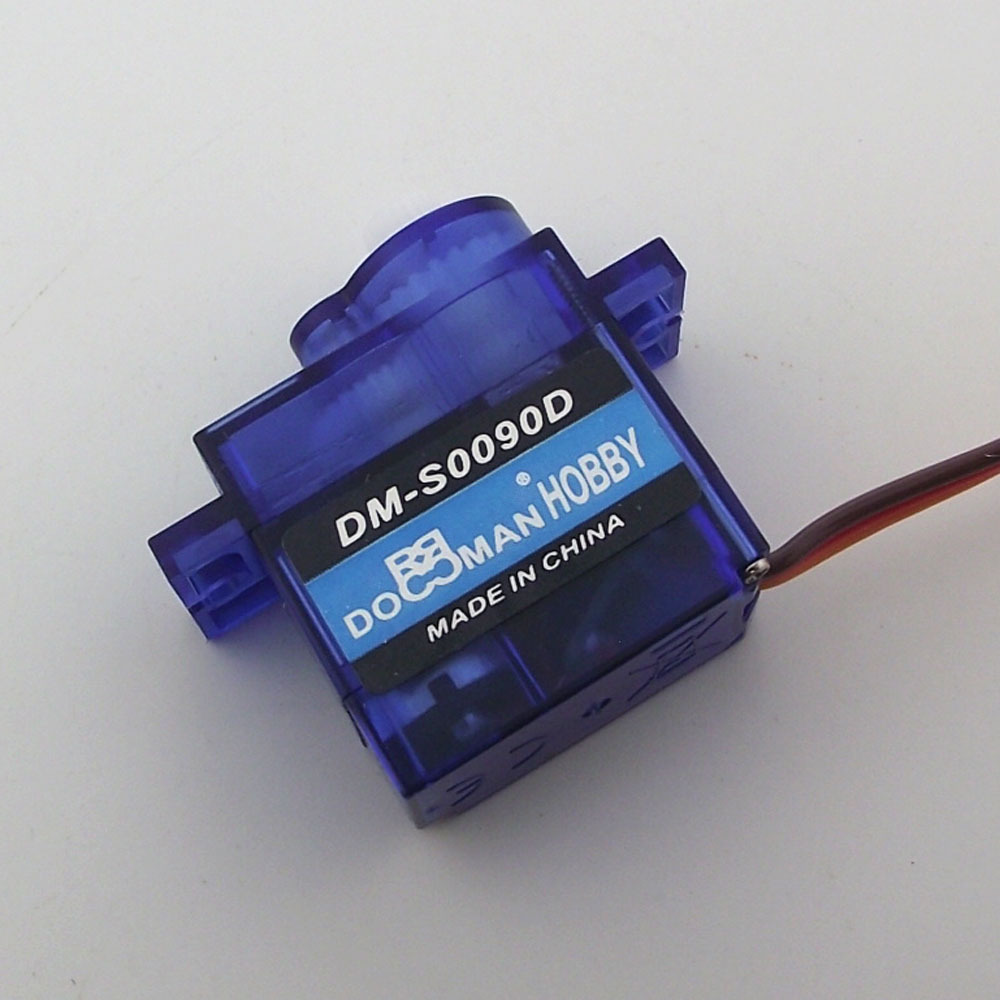

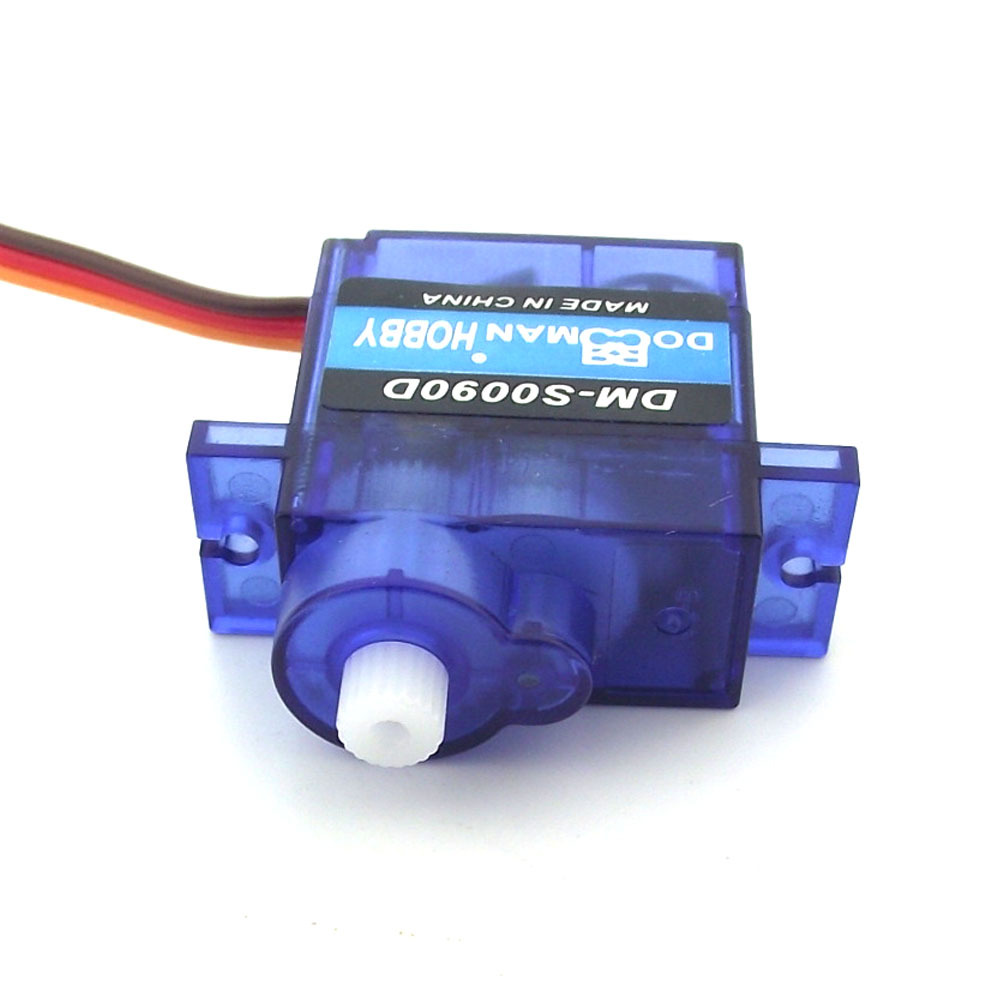

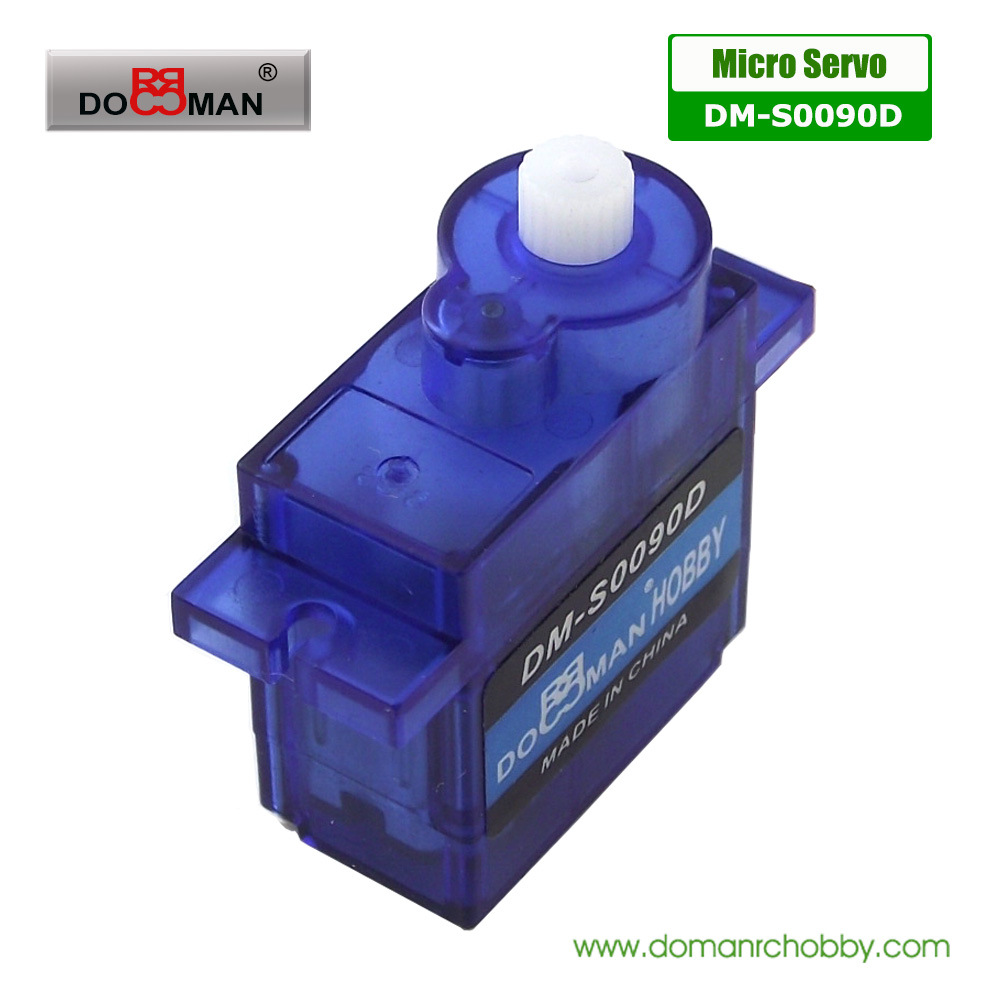

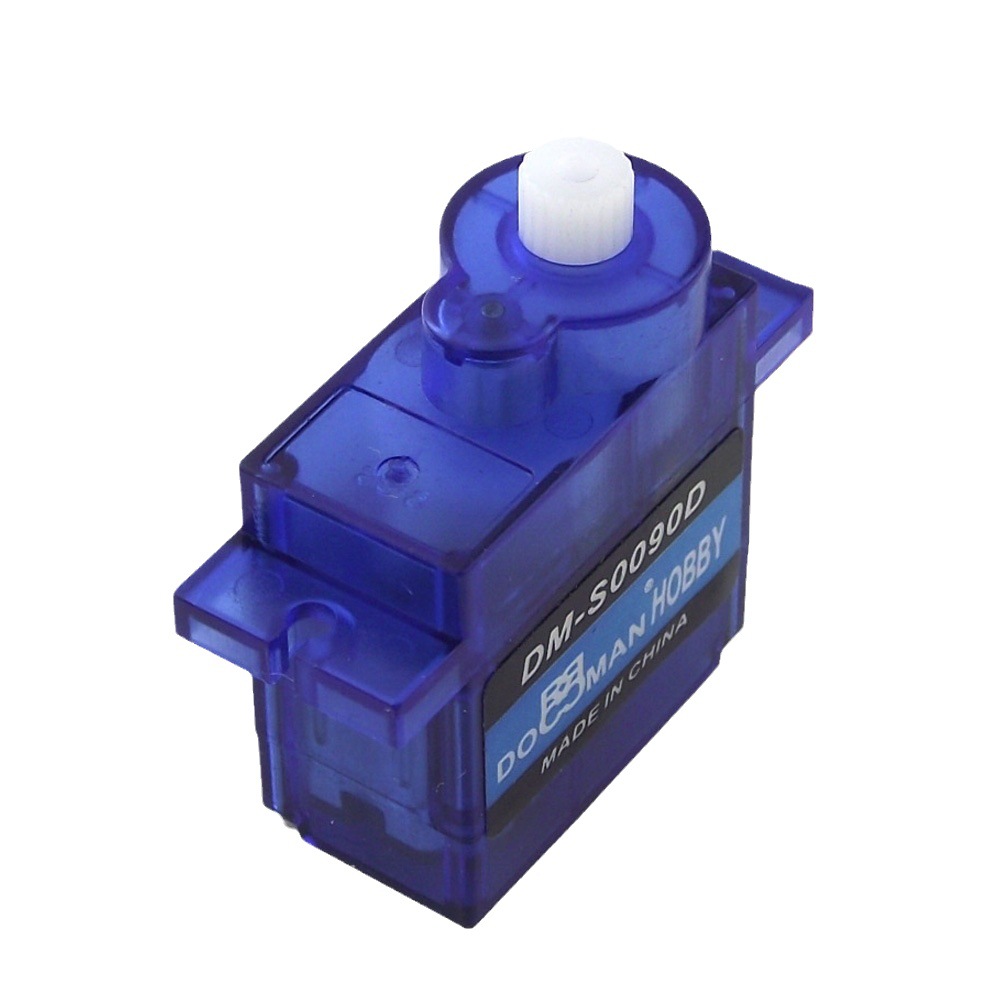

[Product Photos]:
